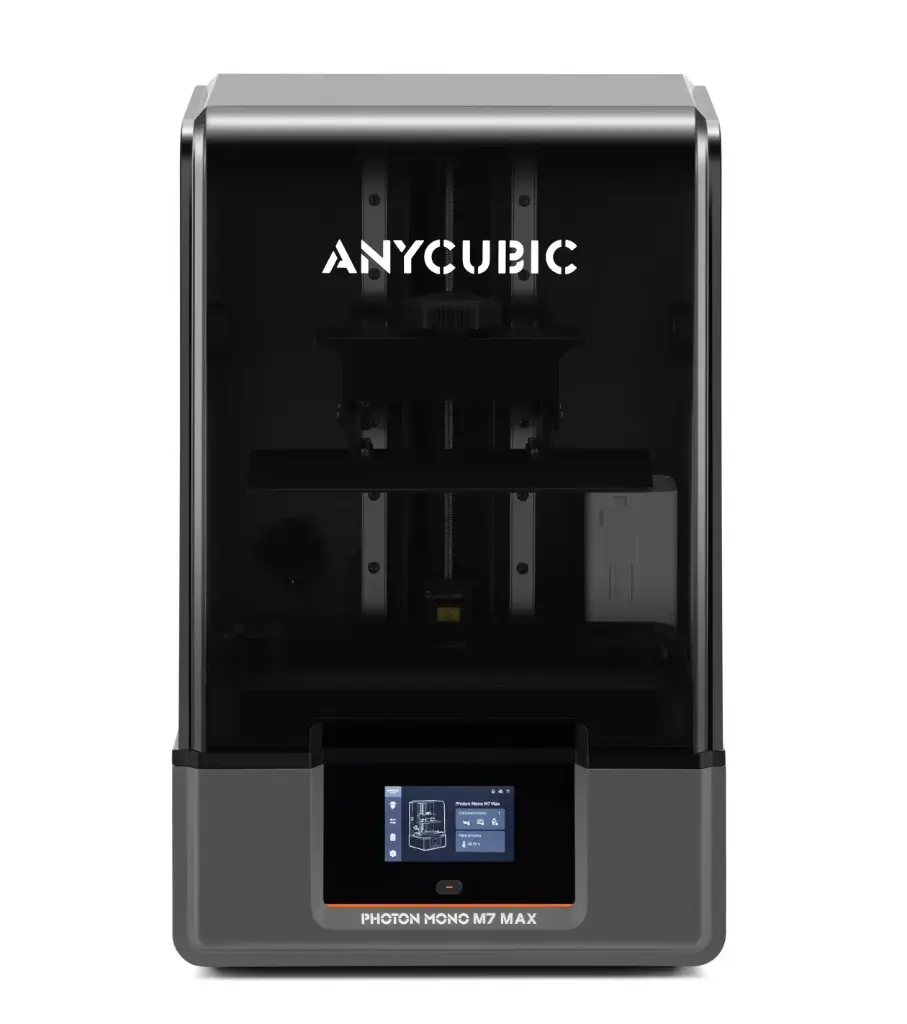

Anycubic Photon Mono M7 Max
Product Features
● Maximum print speed of 4 Sec. per layer (0.05mm layer height)
● LighTurbo 3.0 High-Precision Light Source System
● Intelligent Release 2.0 Precision Control
● 14.7L Ultra-Large Print Volume

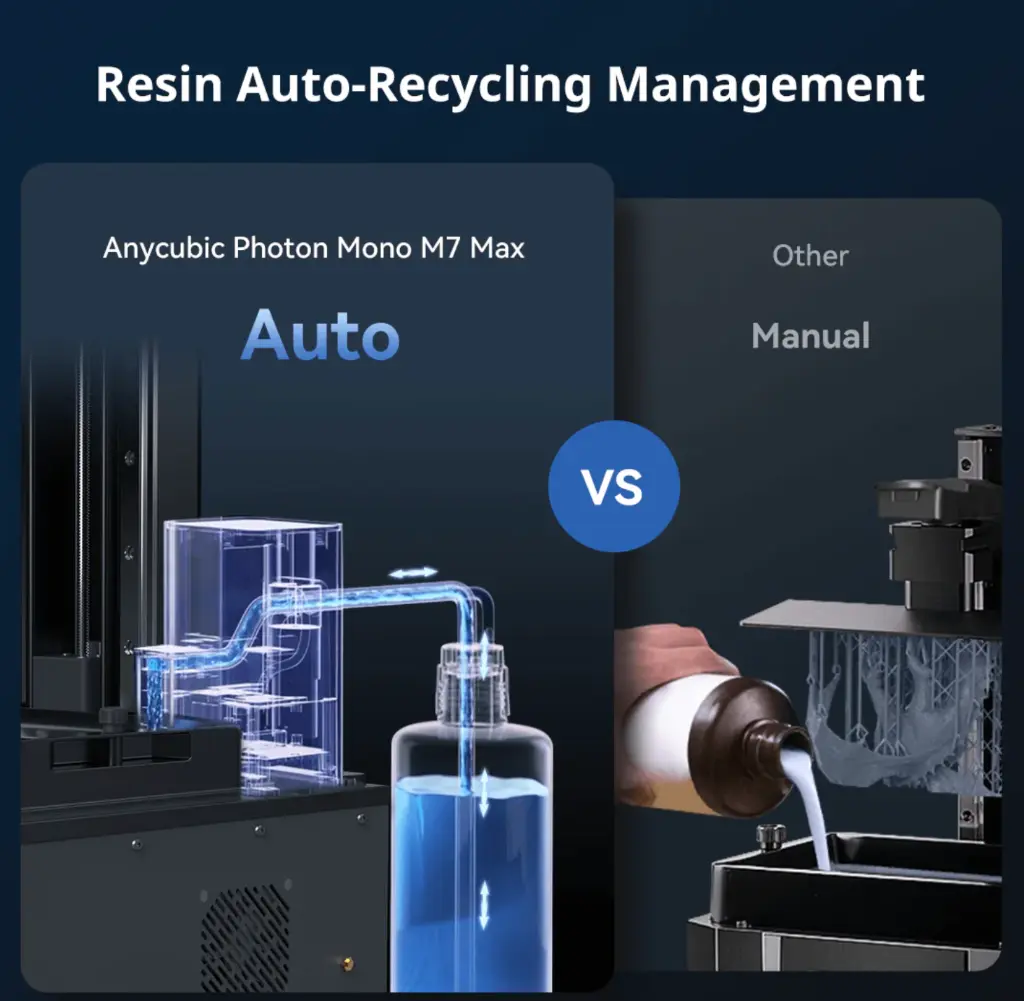

● 20-40'C Resin Temperature Control, Resin Auto-Recycling Management
● 8 User-Friendly lmprovements
Exposure Screen Protection.
Reduce the Risk of Resin Leakage

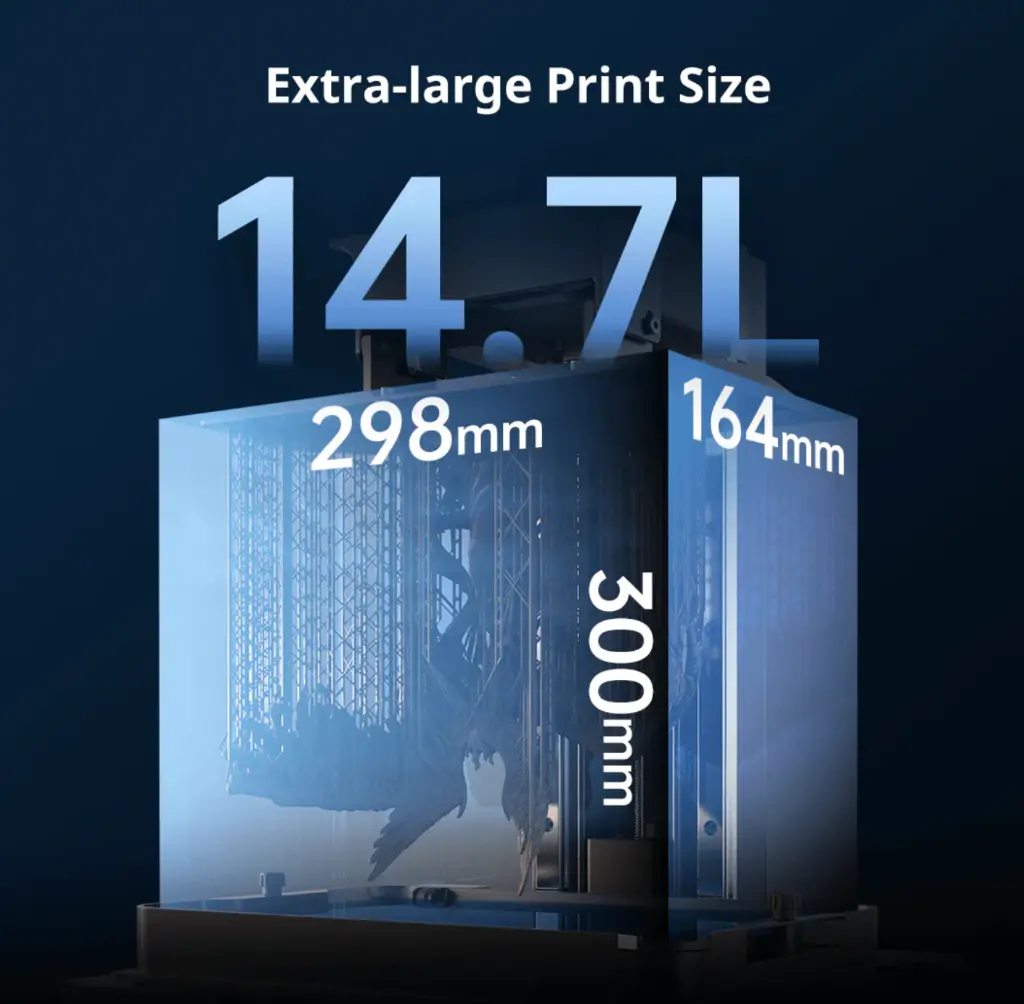

Build volume
298mm*164mm*300mmPrinting volume
14.7LBuild platform
Laser engraving aluminum alloyOperating screen
4.3" Touch-ControlLcd screen size
13.6", 7KResin vat
1.3L Unibody desiqn with scale linesAntenna port
YesLight source
COB light source+front-facing reflectors+Fresnel LensLight uniformity
≥90%Light intensity
4500±500 μw/cm²Machine leveling

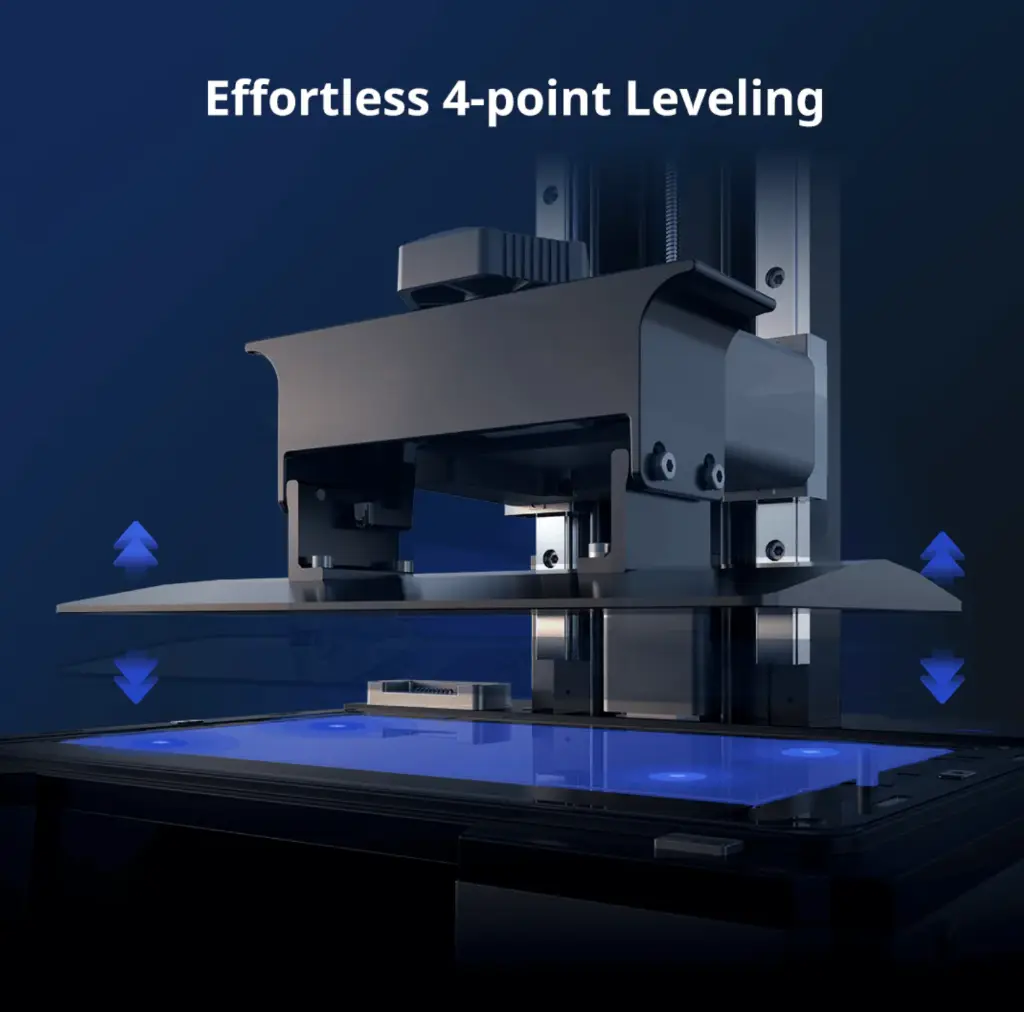

4-point manual levelingXy resolution
46*46μmZ axis
Double liners with 10μm accraceSlicing software
Anycubic Slicing, CHITU & Lychee (Can be supported by the end of Dec.)File transfer
USB & WiFi. LAN (Can be supported around Q4 2024）Release film
ACF FilmPower supply
180W rated powerAnycubic app
SupportWeight
Machine Weight: 24kg / 52.91 lbs, Package Weight: 28.5kg / 62.83 lbsSize
Machine Dimensions: 425*362*652mm, Package Dimensions: 785mm*520mm*490mmHinged cover
Effectively blocks UV radiation, Supports one-hand opening and hovering angles anywhere greater than 45°Printing speed
Max Speed ≤31mm/h, 0.05mm Layer With Standand Resin; Max Speed ≤63mm/h, 0.1mm Layer With Standand Resin; Max Speed ≤86mm/h, 0.1mm Layer With High-Speed ResinSupport language
English, Chinese, German, French, Italian, Spanish, Russian, Japanese.Material
Compatible with kinds of resin (high speed, water-washable, standard, ABS-like, plant-based, etc.)Resin vat
1.3L Unibody desiqn with scale linesProtection film
Replaceable anti-scratch filmAir purifier
USB
