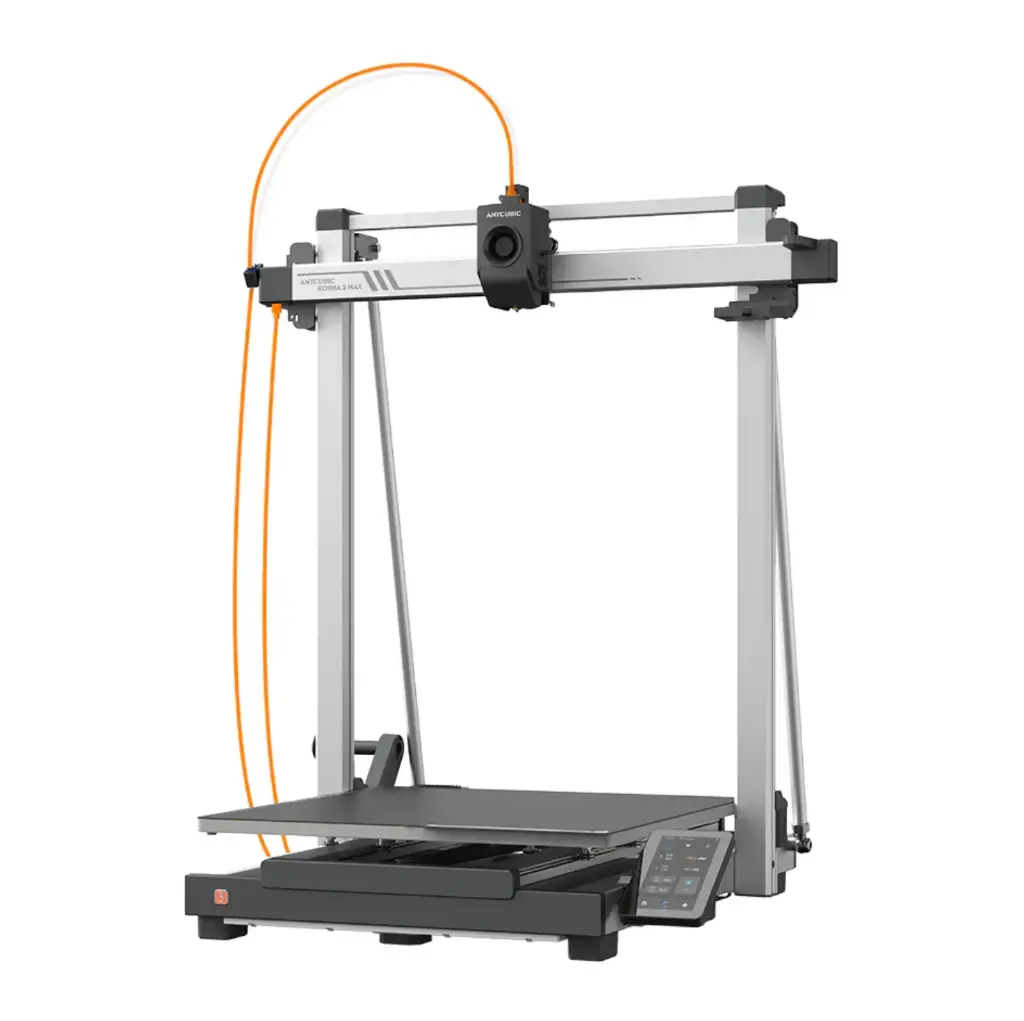

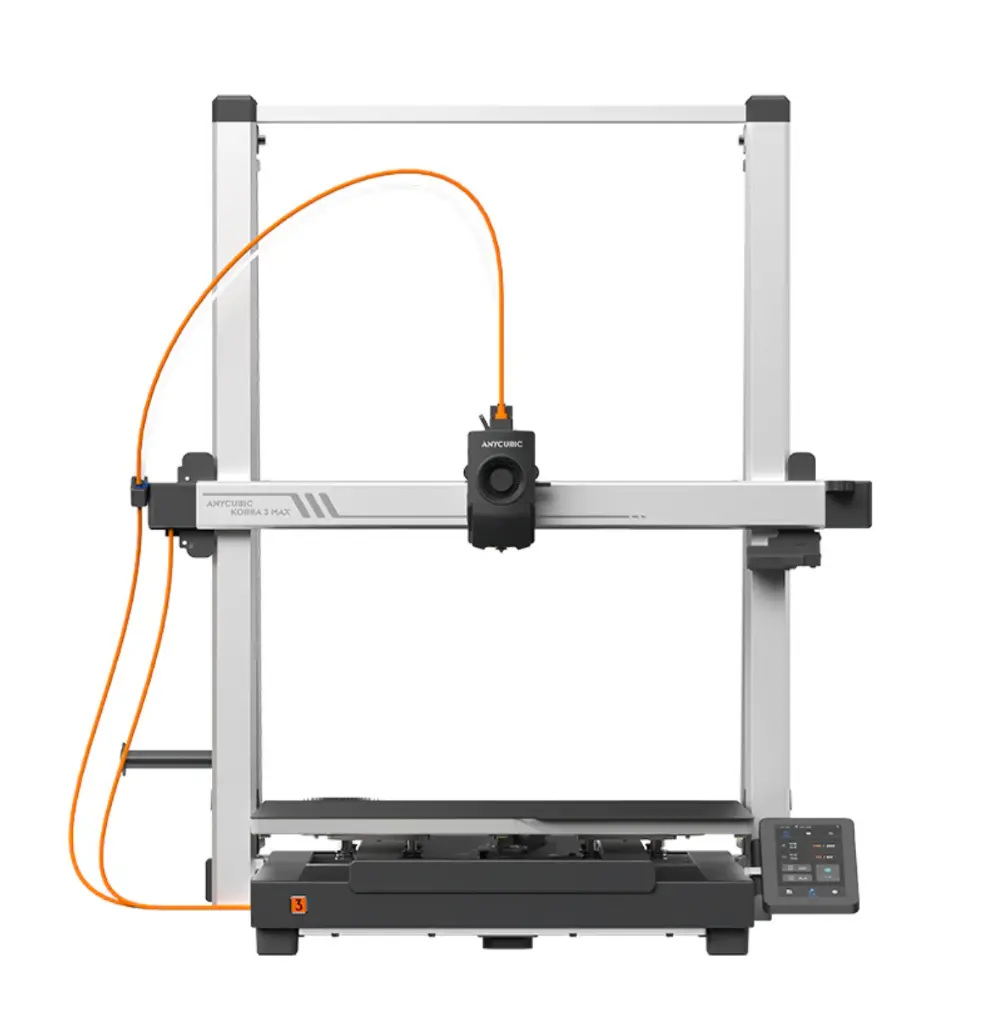

Anycubic Kobra 3 Max

Product Features

● 420*420*500mm Print Volume

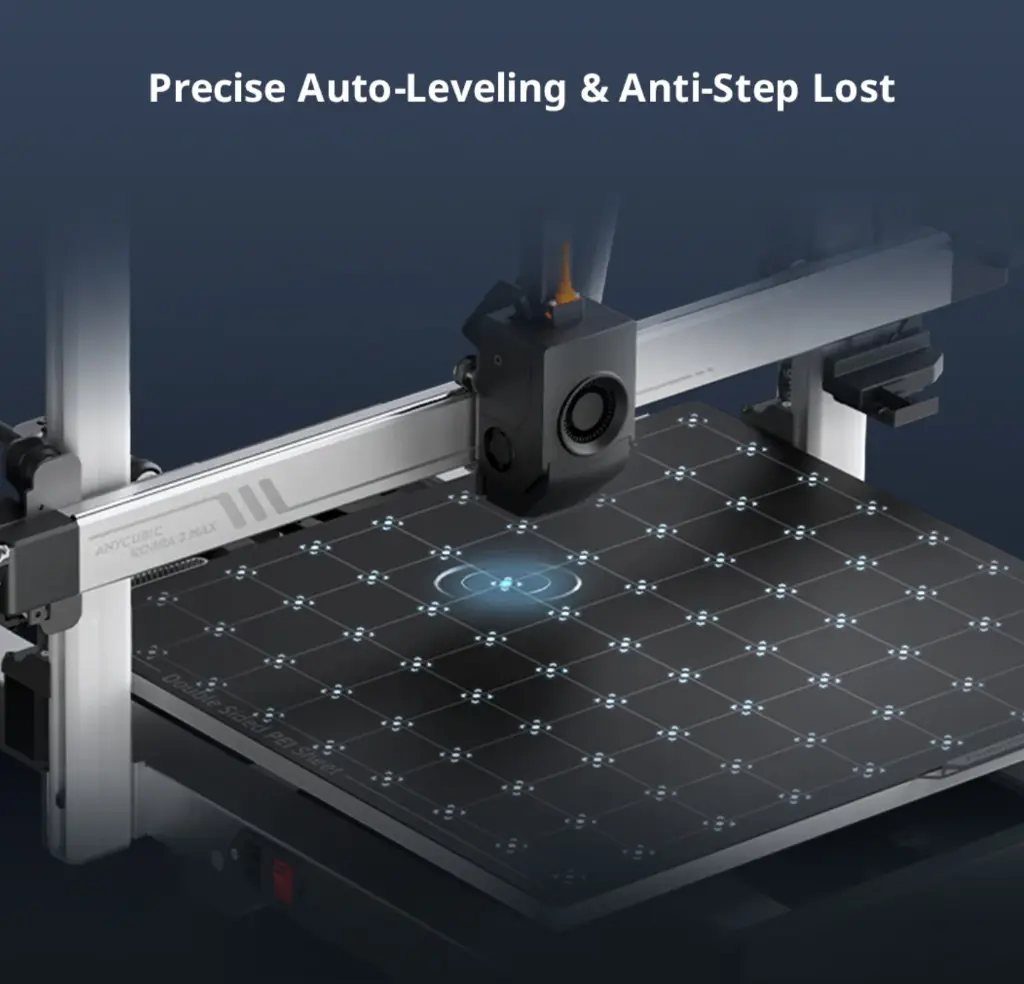

● Precise Auto-Leveling & Anti-Step Lost

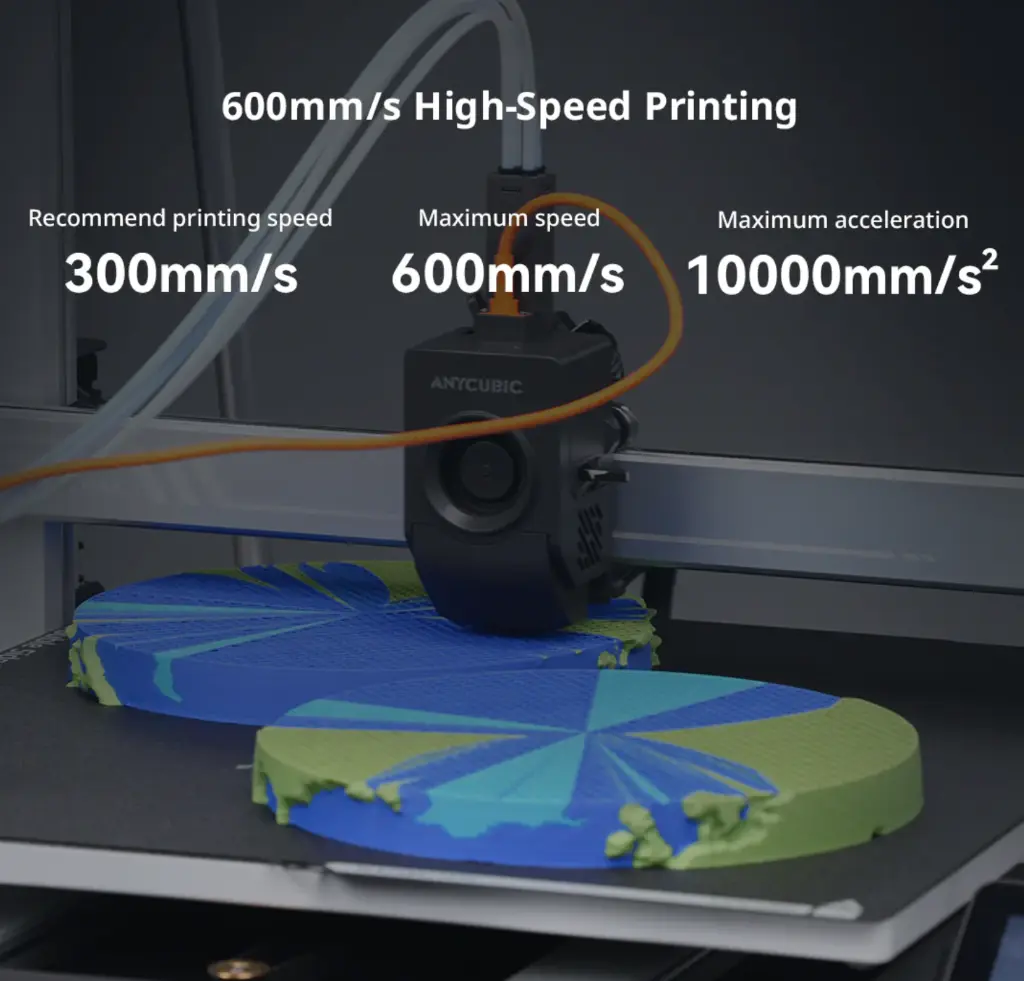

● Printing Speed Up to 600mm/s

● Anycubic Slicer Next & App Upgrade

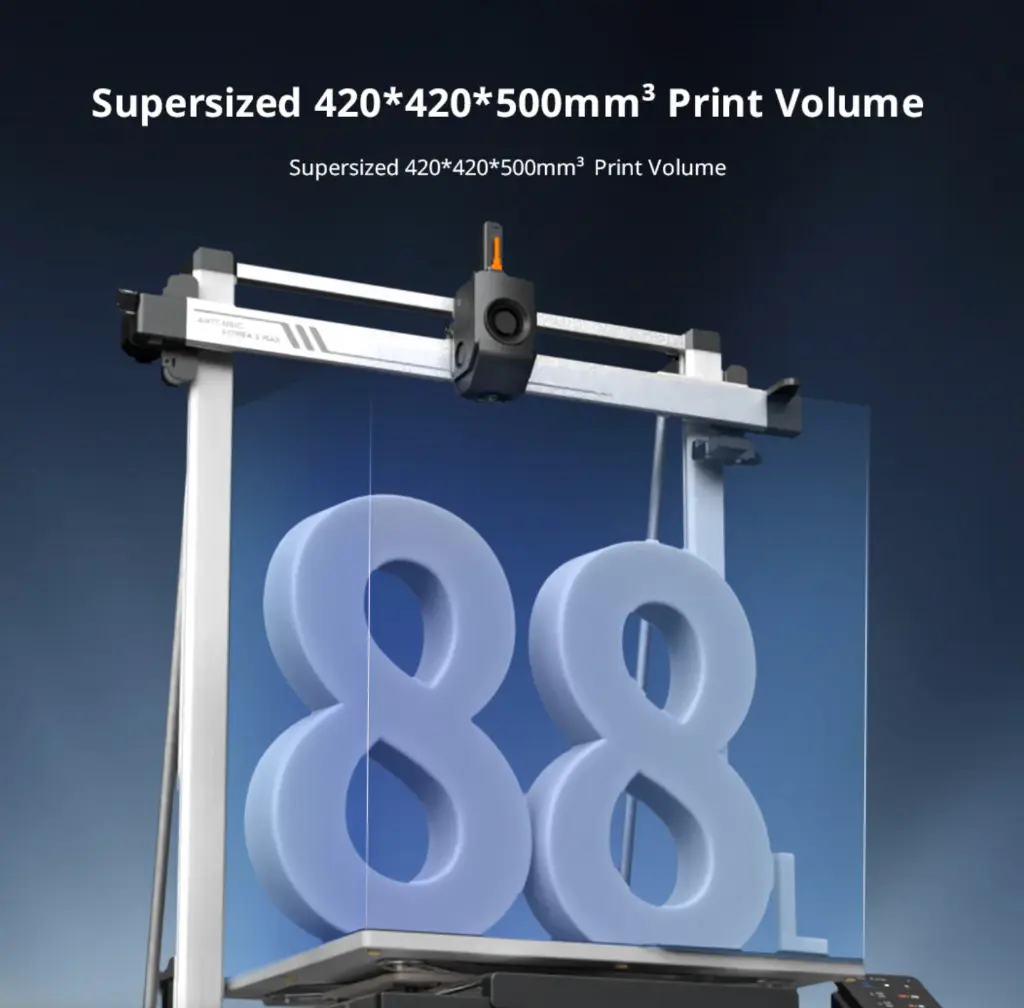

420*420*500mm³ Print Space ＞ 2 Carry-on Suitcases

Ultra-Large Model in a Single Print

Reduce Filament Wastage during Mass Productions

Skip Objects Function Boosts Efficiency & Cuts Costs

The Anycubic Software Ecosystem

Anycubic Slicer Next: Developed Based on Orca + LAN Mode + Multi-Plate Management

Anycubic APP: Remote Control + Real-Time Monitoring+ Time-Lapse Photography

Makeronline: Vast Model Selections + One-Click Slicing and Printing

Build volume
420*420*500mm
Machine weight
Kobra 3 Max 19kg
Package weight
Kobra 3 Max 22.5kg
Machine dimensions
Kobra 3 Max: 706*640*753mm
Package dimensions
Kobra 3 Max: 830*735*215mm
Printing speed
Recommended speed 300mm/s; Max Speed 600mm/s;
Machine leveling
LeviQ3.0 Fully automatic leveling, no need for Z-axis compensation
Build platform
PEI spring steel
X axis
Dual shaft core + SG15 bearing
Y axis

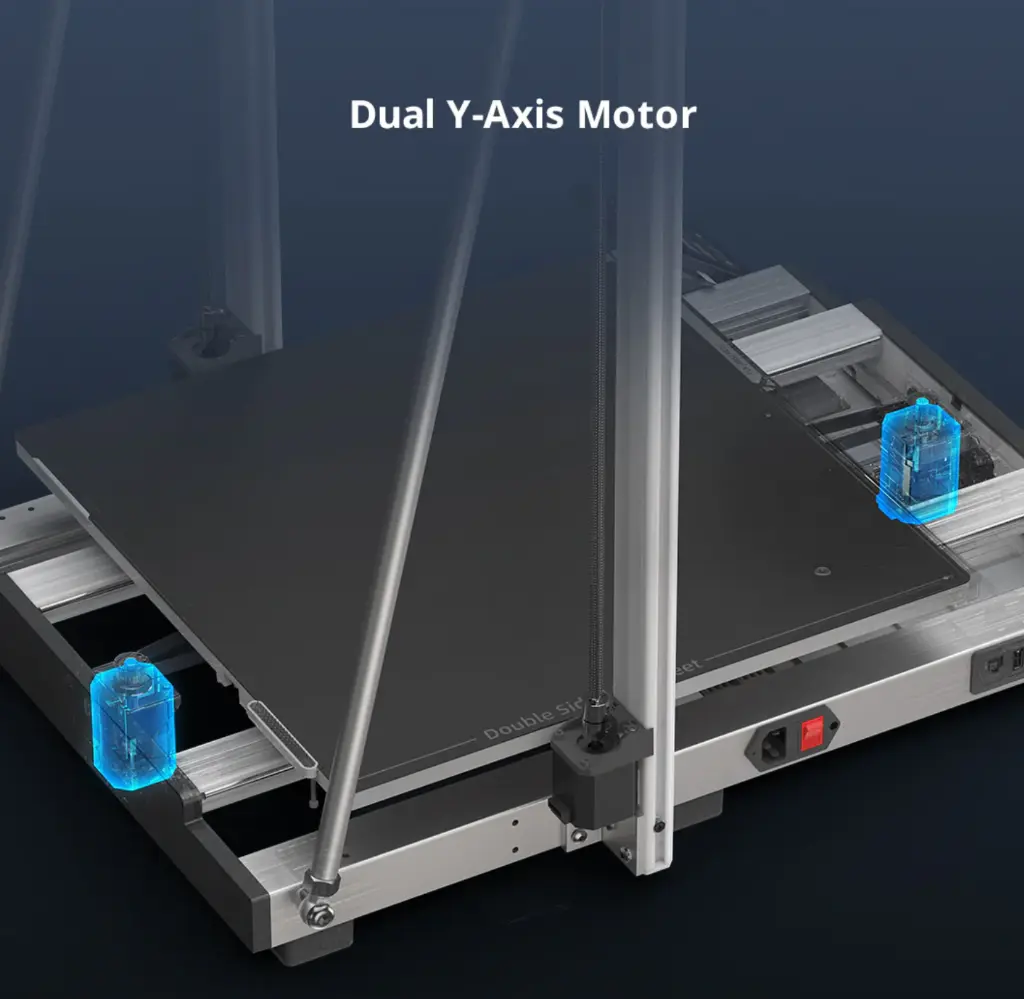

Dual shaft core + SG15 bearing + dual motor
Z axis
Dual motor dual screw
Operating screen
4.3-inch touchscreen
Slicing software
Anycubic Slicer Next, third-party
Material
Ideal: PLA, PETG, TPU; Capable: ABS, ASA; Not Recommended: PA, PC
Power supply
300W
Connection method
Wi-Fi, AC Cloud, LAN Mode
Cooling fan rpm
7000RPM
Nozzle
Standard 0.4mm. Supports 0.2/0.6/0.8mm expansion
Extruder
Short distance extrusion
Hotbed temperature
≤90℃
Nozzle temperature
≤300°C
Noise
≤60dB (Standard mode)

Print Volume	420420500mm³
Max Print Speed	600mm/s
Max Acceleration	10000mm/s²
Nozzle Diameter	0.4mm (0.2/0.6/0.8mm available)
Auto-Leveling	LeviQ3.0 Auto-leveling
Benchy Print	17 min
Noise	60dB (standard mode)
X-axis motors	Dual shaft core + SG15 bearing
Y-axis motors	Dual shaft core + SG15 bearing + Dual motor
Z-axis motors	Dual motor dual screw
Max Nozzle Temp.	300°C
Max Hotbed Temp.	90°C
Belt Tensioning	Automatic
Quick-release Hotend	Yes
LAN Mode	Support
WiFi	Support
App Control	Support
Slicing Software	Anycubic Slicer Next, third party
Auto Resume	Support
AI Detection	AI Spaghetti Detection, Skip Objects
Resonance Compensation	Support
Dynamic Flow Compensation	Support
